Safety Harnesses

Safety harnesses

Single anchor full body safety harness
1 anchor of D shaped ring on rear. With adjusting buckles and rectangular plastic holders. Adjustability in
full at breast and thigh makes wearer feel comfortable and safe; Load capacity 150KG; Material: Polyester
webbing with width 45MM and steel fittings; Produced as per EN361:2002. Attached with labels on which
personal serial no. marked; Sizes S, M, L and XL are available.



Standard double anchor full body safety harness
1 anchor of D shaped ring on rear and two webbing hanging links at breast. The shoulder belt with adjusting
buckles ensures the breast belt to set over the zone of breast plate. Adjustability in full at shoulder, breast and
thigh makes wearer feel comfortable and safe; Load capacity 150KG; Material: Polyester webbing with width
45MM and steel fittings; Produced as per EN361:2002. Attached with labels on which personal serial no. marked;
Sizes S, M, L and XL are available.



Three anchor full body safety harness
1 anchor of D shaped ring on rear and two anchors of D shaped ring at breast. With adjusting buckles and
rectangular plastic holders. The shoulder belt with adjusting buckles ensures the breast belt to set over the
zone of breast plate. Adjustability in full at shoulder, breast and thigh makes wearer feel comfortable and safe;
Load capacity 150KG; Material: Polyester webbing with width 45MM and steel fittings; Produced as per
EN361:2002. Attached with labels on which personal serial no. marked; Sizes S, M, L and XL are available.



Single leg fall arrest safety lanyard rope with shock absorber
Performed standard EN354-2002 / EN355-2002；
Length 2M, 1.5M and 1.0M;
One shock absorber, one pc of polyester safety rope with diameter of 12MM, one link hook and one scaffold hook;
Attached with labels on which personal serial no. marked;
For the assembly, maximum absorbing force over 1500KG, during fall, the force acting on the body below 600KG.



Double leg fall arrest safety lanyard rope with shock absorber
Performed standard EN354-2002 / EN355-2002；
Length 2M, 1.5M and 1.0M;
One shock absorber, 2 pcs of polyester safety ropes with diameter of 12MM, one link hook and one scaffold hook;
Attached with labels on which personal serial no. marked;
For the assembly, maximum absorbing force over 1500KG, during fall, the force acting on the body below 600KG.



Safety lanyard rope
Without capacity of shock absorbing, fall arrest not available.
Performed standard EN354-2002；
Length 2M, 1.5M and 1.0M;
1 pc of polyester safety ropes with diameter of 12MM, one link hook and one scaffold hook;
Attached with labels on which personal serial no. Marked.

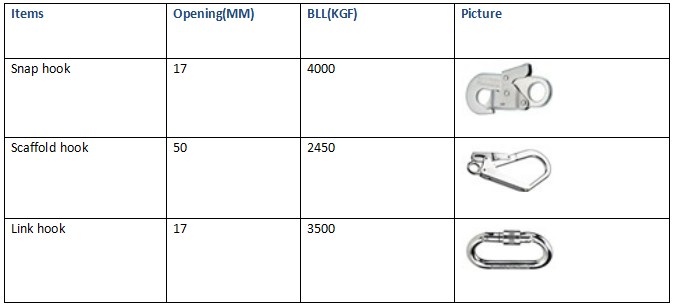

Hardware fittings for fall arrest


Usage and maintenance
1.When work is done at the place above 1.8M height, the full body safety harness shall be worn. For the operator
off the ground, it is an ideal practice to wear the harness even if the relevant work does not require that it shall be
worn.
2.Make it sure to wear the full body safety harness properly. There shall not be a slack at any position of the harness.
And also, if it is too tight , restrictions to the space of movement will be imposed.
3.Prior to usage, the harness shall be inspected. In case of rupture, tear or abrasion on any component, it shall not
be used any more.
4.The harness shall be inspected regularly by qualified person for being using if necessary. Check the sign for damage
totally. Seek break, abrasion, cut on the fibers and relaxation on the stitching threads. Inspect the buckles to make sure
of no bend or break. Ensure it that all rivets are secure and in the proper positions. Inspect abrasion, obstacle, weakening
points and cut on the lanyard. The lanyard at any risk shall not be used.
5.Regularly replace the lanyard and ensure it not to get worn and embrittled.
6.Shall keep the harness clean. In case that the harness gets dirty, it may lead to breakdown and cause accident.
7.The maximum arrest force that the operator in the harness is able to bear as fall happens is restricted at 600KG. To make
sure it does not go beyond the force limit, the decelerator or the lanyard with shock absorber shall be considered to use so
that the distance for free fall gets shortened as possible.
8.Clean the harness with dampened cloth or soft soap. Dry it entirely after cleaning.
9.Do not place it in the direct sunlight, if not, it may cause the harness gets weakened and embrittled.
